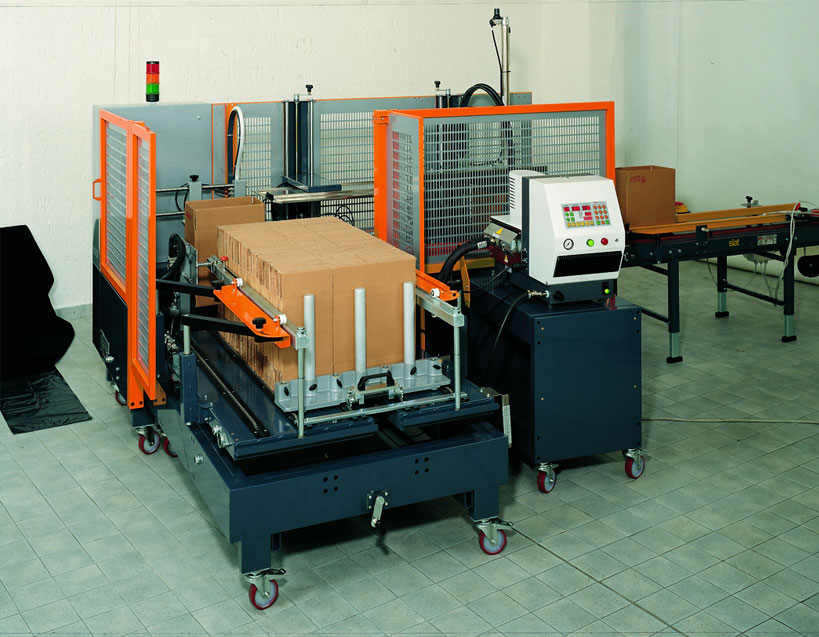

CASE ERECTOR - HM145

F144

Features

Automatic case former with side driven belts and manual dimensioning, suitable to seal the lower part of boxes with Hot Melt glue. It doesn’t require the presence of an operator.

The operator, after having filled the box storage with boxes and adjusted the machine, presses the START button. The machine automatically picks up a box from the box storage and a carriage drags the box which is automatically opened by the box-opener lever. Then the box is pushed by a second carriage into the machine through the side driven belts, while the flap folder devices partially fold the laps.

Key Features
  • Box storage for 150 boxes
  • Box storage available on left side (SX) or right side (DX)
  • Production up to 700 boxes/hour
  • 2 x Carriages moved by compressed air (SMC+BOSCH) with suckers to pick cartons from box storage, square and push them in motorized driven belts (2 x motors kW 0,18 each) for the bottom flaps forming and sealing
  • ROBATECH Hot Melt generator positioned on an external carriage with casters
  • VENTURI vacuum system
  • Control panel equipped with: box counter - box timer, low box storage alarm, brake/end tape alarm, full line alarm after the machine
  • Safety protections with switches to disconnect electric & pneumatic circuits if opened
  • OMRON PLC
  • Box dimensions
  • Min. L 200 mm W 150 mm H 200 mm
  • Max. L 560 mm W 350 mm H 450 mm

Options
  • Box storage for 300 ML boxes on request
  • BECKER vacuum system on request
  • FESTO compressed air valves on request
  • Other Hot Melt generator on request
  • Other PLC brand on request
