CASE PACKERS - HM11/TB

HM11/TB

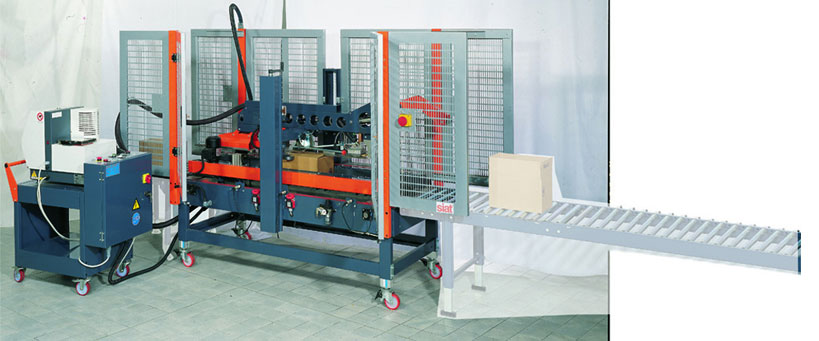

HM11/TB Is An Automatic Hot-Melt Carton Sealer.

Automatic Hot Melt case sealer with side driven belts and manual dimensioning, suitable to seal the upper and lower parts of boxes of the same size coming from filling line. It doesn’t require the presence of an operator.

Automatic Hot Melt case sealer with side driven belts and manual dimensioning, suitable to seal the upper and lower parts of boxes of the same size coming from filling line. It doesn’t require the presence of an operator.

The Hot Melt sealer doesn’t require the presence of an operator except for the glue adjustments and feeding. It is equipped with an anti-accident guard with panels which prevents the operator from coming into contact with the moving parts or with high temperatures parts.

Key Features
  • Automatic top carton flaps-folder device
  • Manual adjustment on the different box sizes (width, height, length) by handles
  • Side motorized driven belts (2 x 75 mm width each)
  • Driven belts speed 21 m/min
  • 2 x Motors kW 0,18 each
  • Top & bottom gluing unit spreading the glue on the top and bottom cartons flaps while boxes are passing through the machine, before top flaps folding
  • ROBATECH Hot-Melt generator on an independent carriage with casters with 5 Kgs tank, tube and gun with 4 spreading valves included
  • Generator allows glue temperature & volume
  • Memorization of sealing programs
  • Timer setting to allow pre-heating adjustment
  • Box dimensions adjustment
  • Side safety protections connected to electro-pneumatic disconnection switches and stop emergency button
  • Control panel equipped with: main switch start, stop button, stop emergency button and control system of boxes glued through photocells
  • Production capacity up to 1000 boxes/hour
  • Adjustable working height 500 – 750 mm
  • OMRON PLC

Box Dimensions
  • Min. L 200 mm W 150 mm H 150 mm
  • Max. L 500 mm W 500 mm H 500 mm

Options
  • Other PLC brand on request
  • Other Hot-Melt generator on request (PREO, NORDSON and other brand)
