STRAPPING MACHINE
Home
Our Product

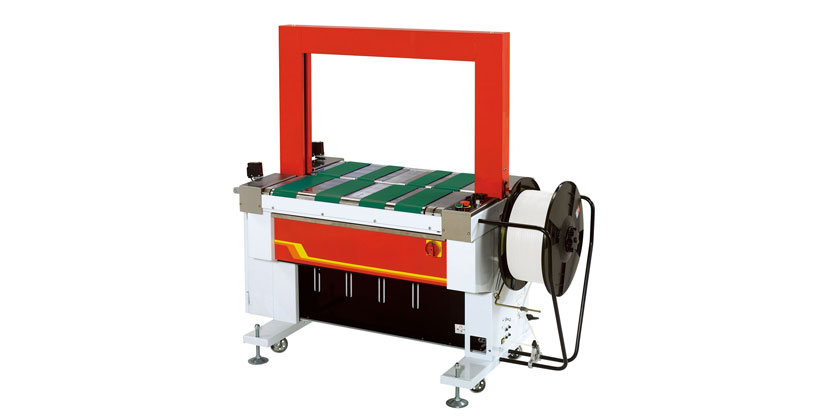

TP601B
TP601B
Main Features
Three Phase
For 8 mm-12 mm P. P. strap
Belt-driven table
Multiple strap function for single, double, continuous strapping or transit mode
Table height: 825 mm
Standard conveyor speed: 30 meters/minute
Conveyor Speed: 30 meters/minute
Multiple strap function for single, double, continuous strapping or transit mode
Up and down stream interlock with complete plug connection
Easy bundle flow direction change
Strap end ejector
Options
Siemens PLC control
Variable conveyor speed: from 18 meters/minute to 42 meters/minute
Safety guards
Foot pedal switch
Stainless steel frame SUS 304 (TP-601BS)
ENQUIRE NOW
Technical Data
Strap Width
8 mm-12 mm
Strap Tension
7 kg-70 kg
Speed
Up to 18 packages per minute (60Hz) , (Cycle speed up to 29 straps per minute)
Table Height
825 mm
Net Weight
330 kg
Electrical Req
220V, 380V, 400V 50/60Hz 3PH
